Organisations will often have a large number of staff regularly completing training and recertification activities.
The Competency Matrix, Authorisation Matrix and Training Needs Analysis Matrix allow Managers and Administrators to quickly identify competency gaps, and any workers who may be at risk of their Role becoming invalid, which would cause any linked Authorisation to become revoked.
Note: Data within each Matrix is cached overnight similar to warehoused reports.
Competency Matrix

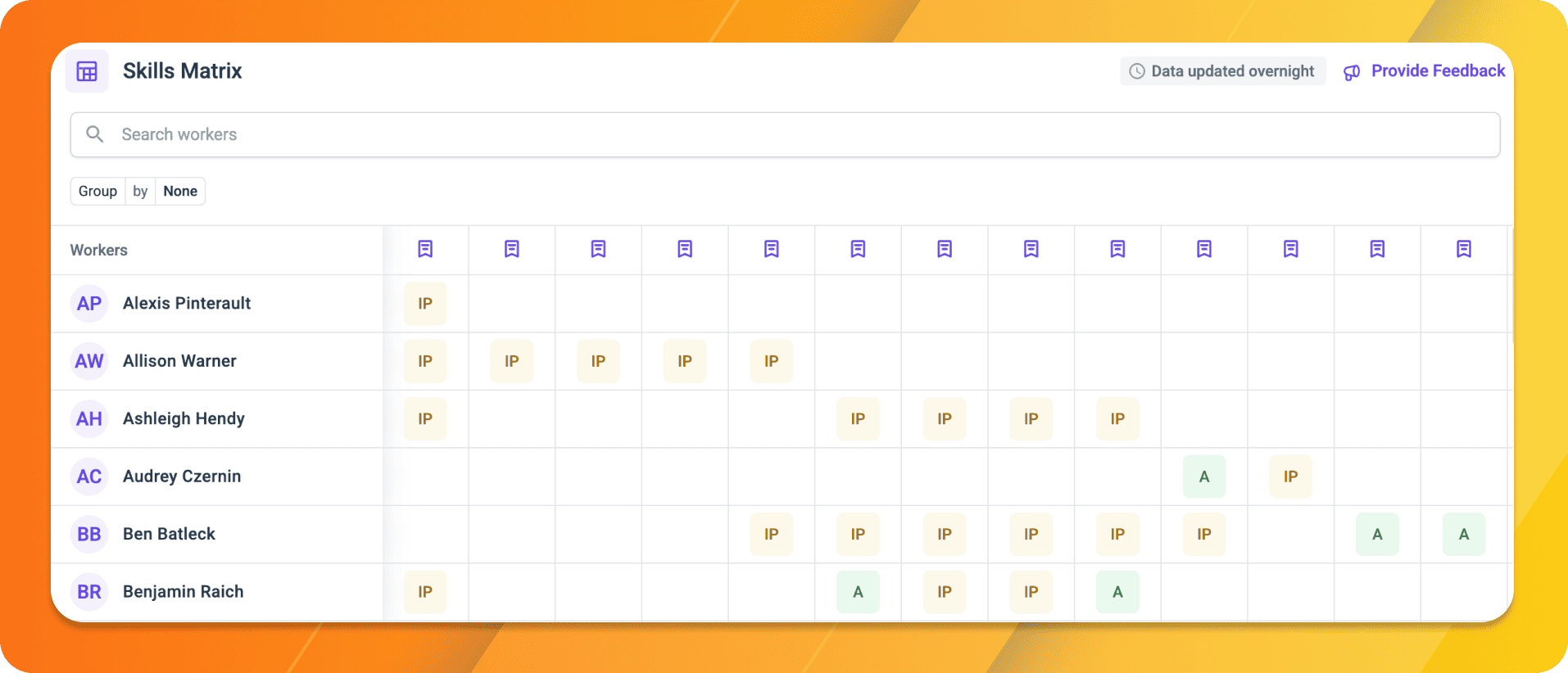

The Competency Matrix (previously called the Skills Matrix) allows Managers and Administrators to view the current state of Competency validity recorded against multiple Workers within a single dashboard.
Workers are listed down the left side of the table, while Competencies are located along the top row.
Workers can be searched for using the Search bar and can be grouped by Primary Organisation using the Group by filter.
Filtering and display options
You can:
- Filter by Competency status, days until expiry, and Organisation
- Choose which Competency columns are displayed
- Toggle expiry dates on or off inside the matrix cells
- Select Reset to clear all active filters, searches and display options in a single action
Note: Hovering over the Competency icon will display the name of the Competency in an info bubble while hovering over the icon within the Competency box will display the current status of the relevant Worker.
The main Competency Statuses are:
In-Progress
Applies when a worker has started an activity linked to the competency but has not yet completed the activities or achieved the Competency.
Pending
Applies if the activity has been completed by the worker but must be manually approved by their manager. This would occur if a rule has been set against the Competency.
Achieved
Applies if the worker has successfully completed all requirements for the Competency and all are currently valid.
Revoked
Applies if Competency Achievement has been manually revoked by a Manager.
Authorisation Matrix
The Authorisation Matrix allows Managers and Administrators to view the current state of Authorisations recorded against multiple Workers within a single dashboard.
Filtering and display options
You can:
- Filter by Authorisation status, days until expiry, Organisation, and Restriction
- Toggle expiry dates on or off inside the matrix cells
- Select Reset to clear all active filters, searches and display options in a single action

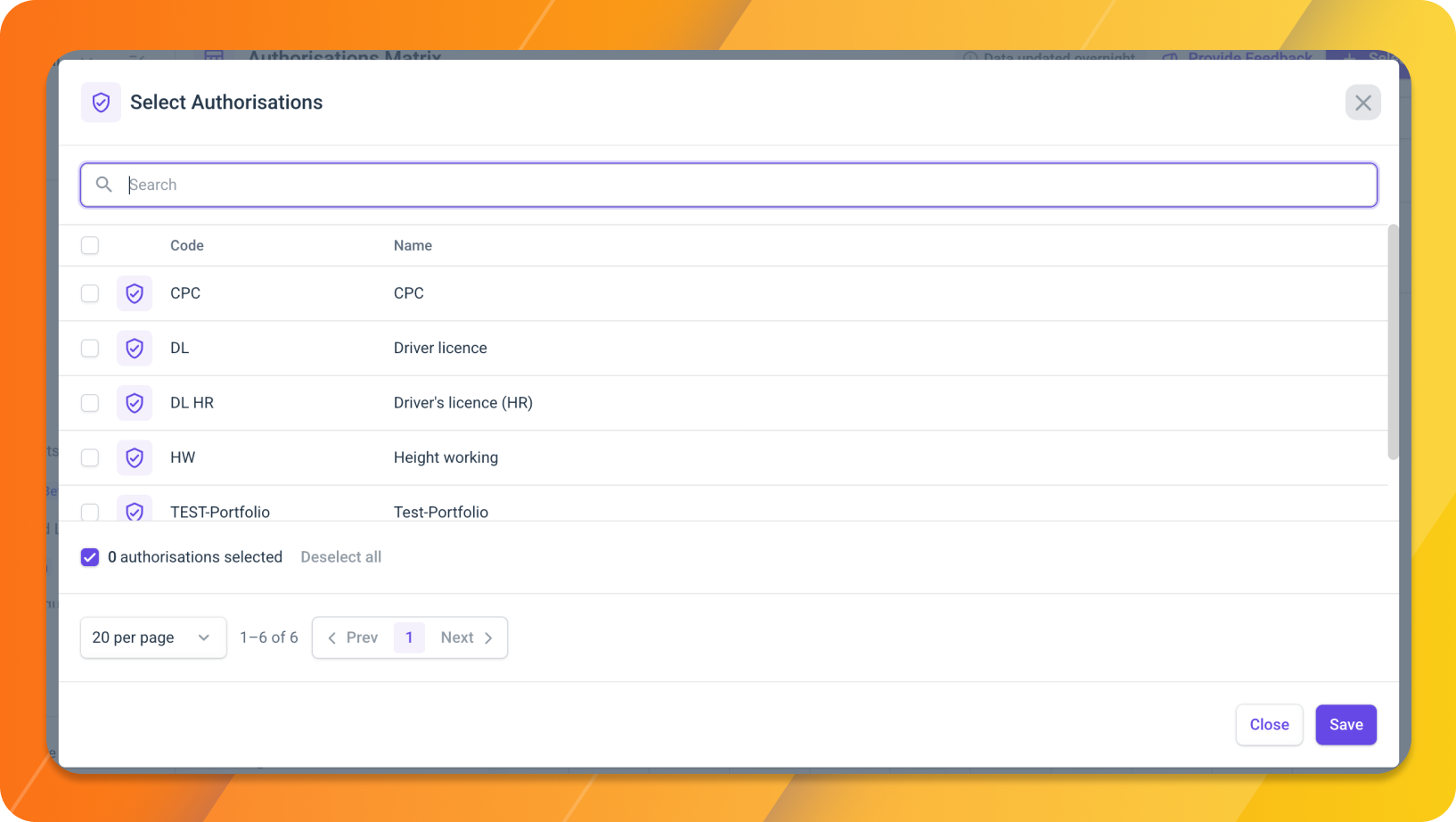

It is possible to choose which Authorisations are displayed using the + Select Authorisation option in the top right of the Matrix.

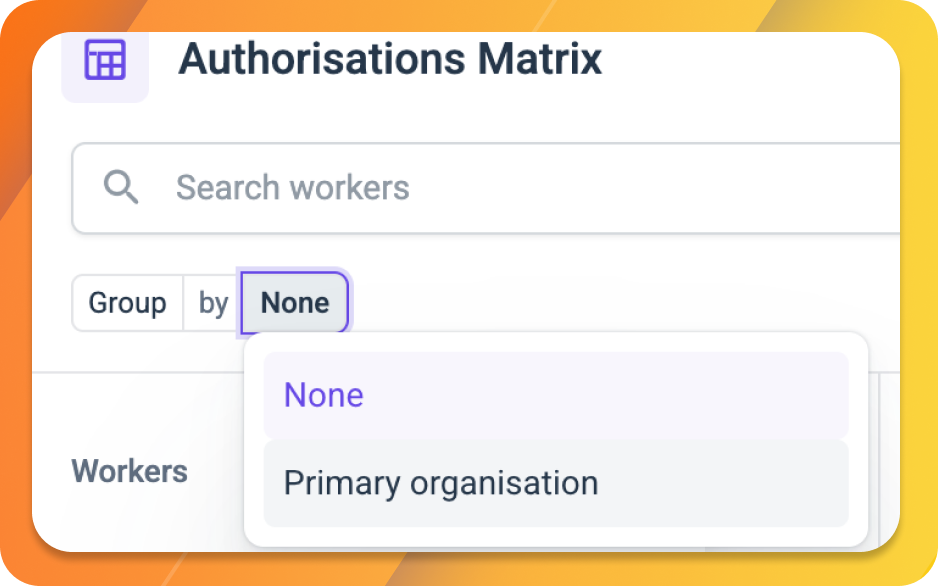

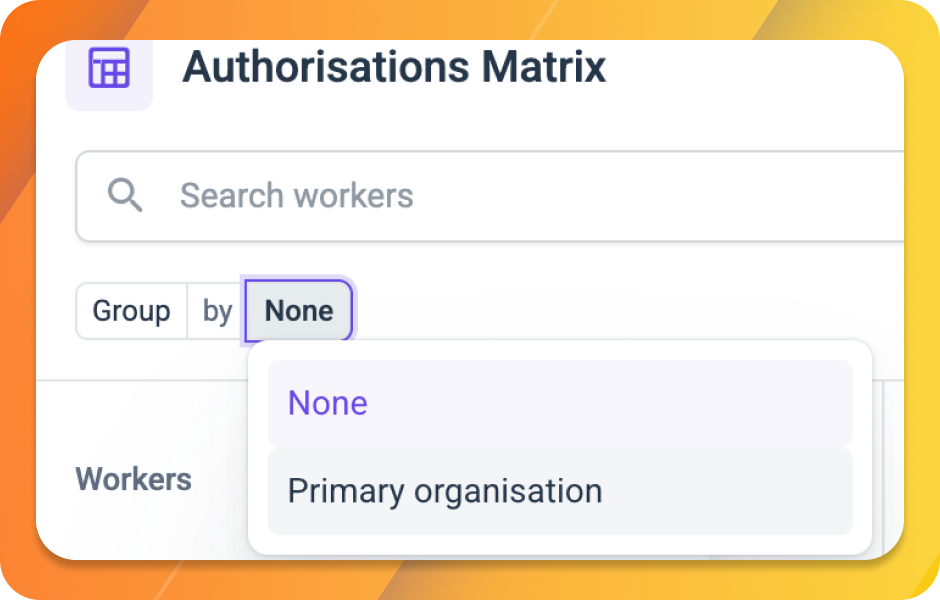

Workers can be searched for using the Search bar and can be grouped by Primary Organisation using the Group by filter.

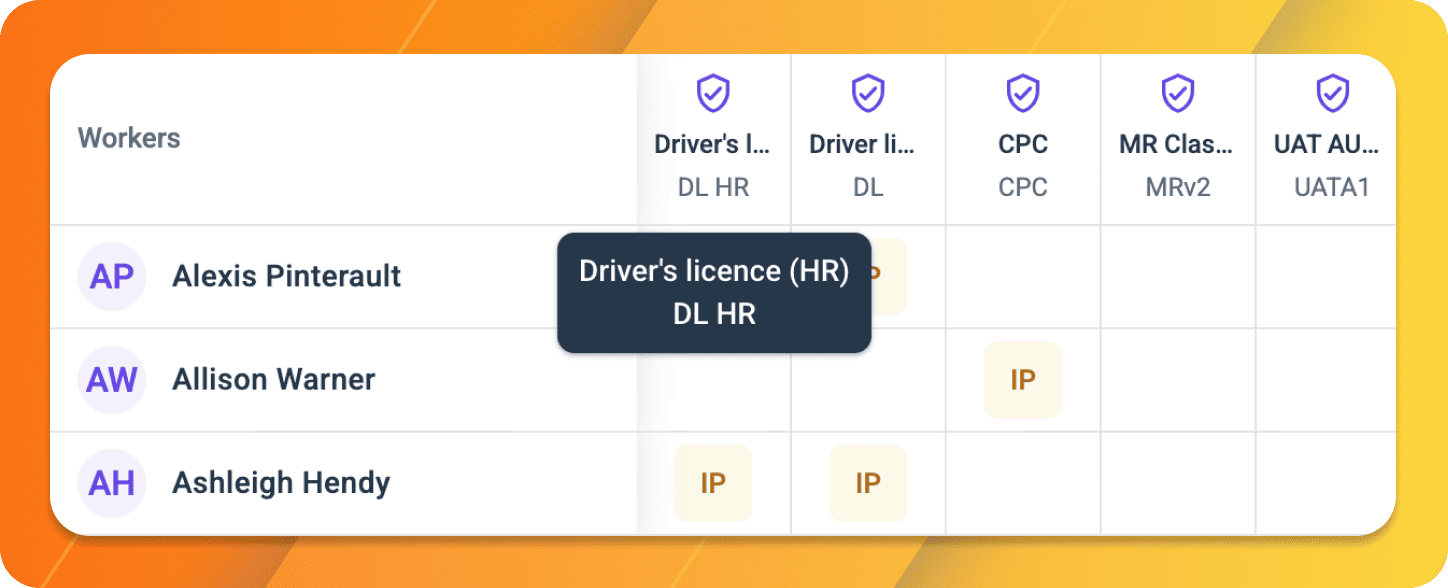

Tip: Hovering over the Authorisation icon will display the full title of the Authorisation.

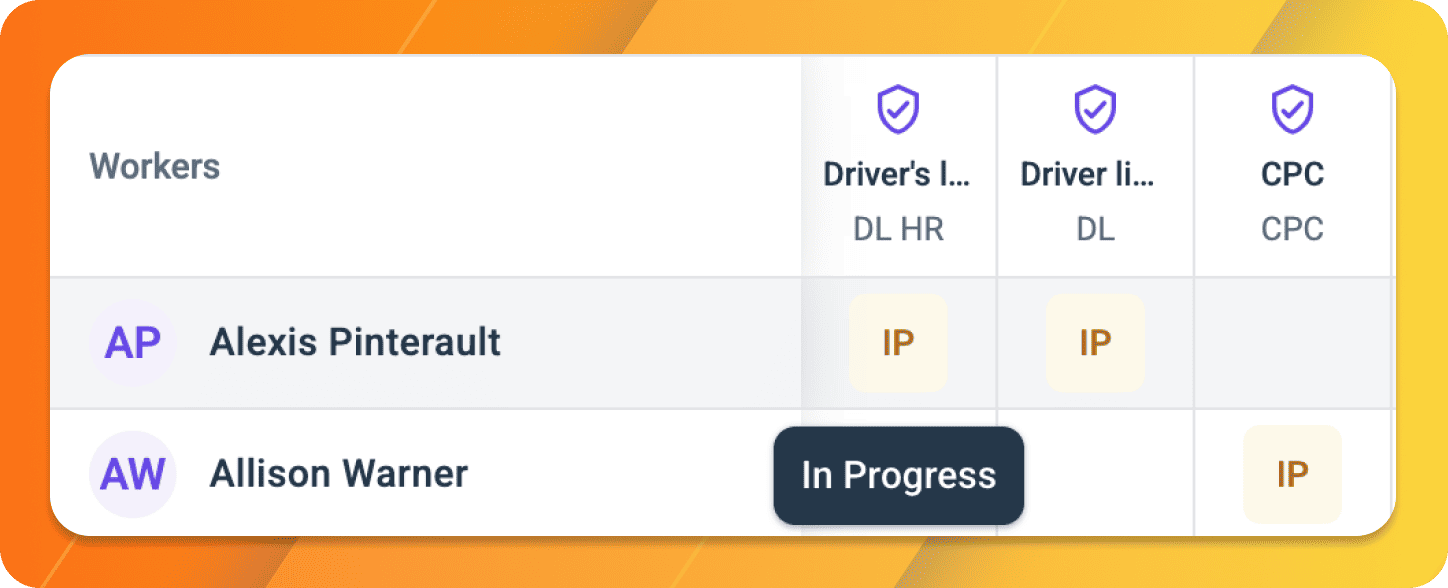

Tip: Hovering over the status icon of the Authorisation will display the full title of the current status.
Training Needs Analysis Matrix
The Training Needs Analysis (TNA) Matrix shows workers' training needs across one or more roles in a single view. Use it to see which required competencies each worker has met, and where the gaps are.
To access the TNA Matrix, open the Competency Matrix and click Select All Competencies in the top right, then Select a Role. Select one or more roles to view the matrix.
Each row displays a worker, and each column, a competency required by the selected roles. With more than one role selected, columns are listed A to Z by competency code. Hover over any cell to see all of its values, and use the legends in the Display menu to check what each colour and abbreviation means.
Workers can be searched for using the Search bar and can be grouped by Primary Organisation using the Group by filter.
If a worker holds the same competency in more than one selected role, the cell shows the strictest obligation. Roles you haven't selected aren't included.
Obligation
Meaning
Mandatory
Required for every worker in the role.
Required
An additional competency this worker must hold.
Ignored
An additional competency that isn't tracked for this worker.
Exporting to CSV
You can export the Competency, Authorisation or Training Needs Analysis Matrix to a CSV file, for gap reports or for sharing outside aXcelerate. The export matches the view you've set up on screen.
Export to CSV:
Select the matrix and set up the view you need, including any roles, filters and columns
Select Export. Preparing export will be displayed while the file is being created
When the export is ready, select Download. The report queue opens in a new tab
Download the file from the report queue. If it shows as waiting, refresh the page
Note: Exporting requires access to reports. Exports can include up to 1,000 columns. If you export again without changing your filters or display options, the existing file is reused.
